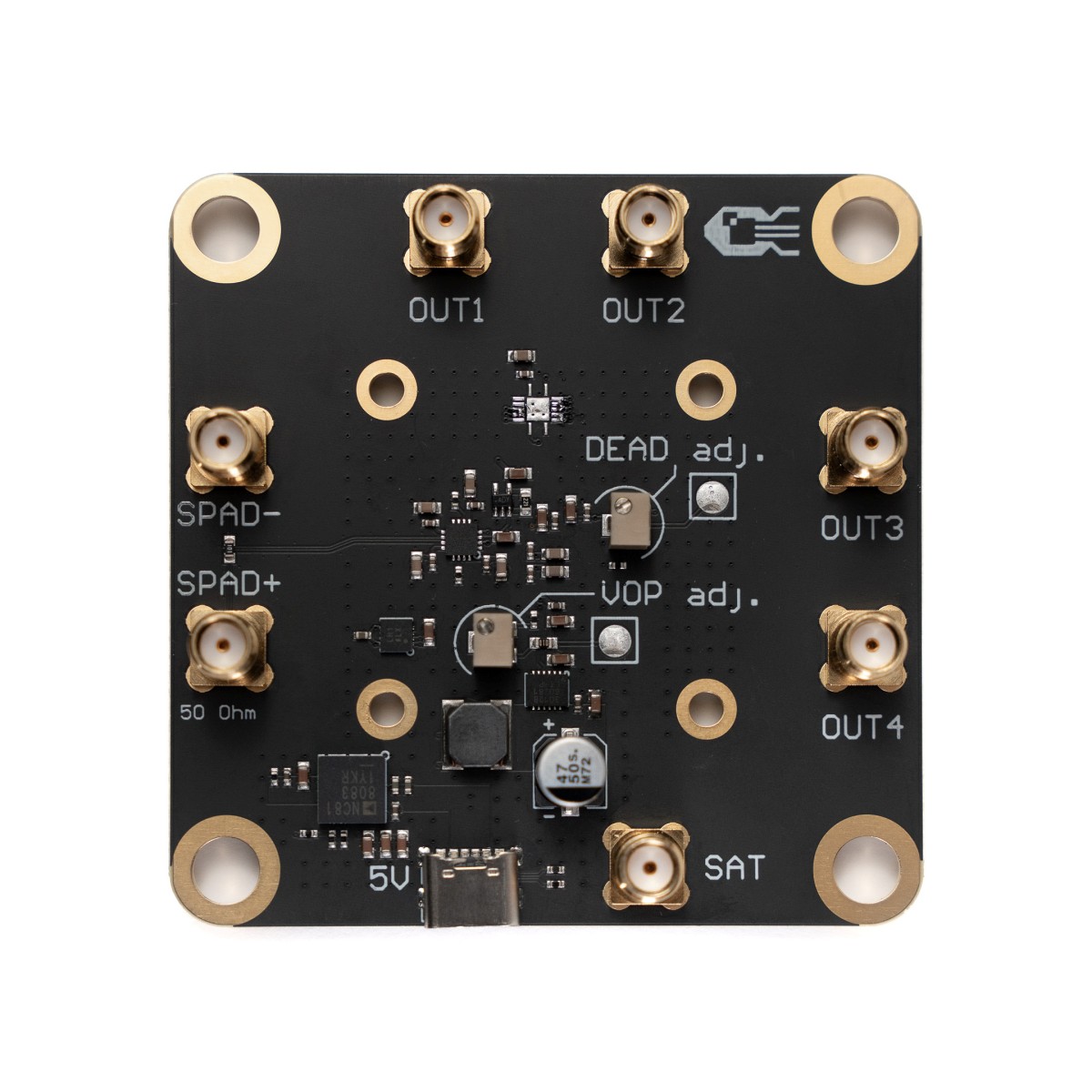

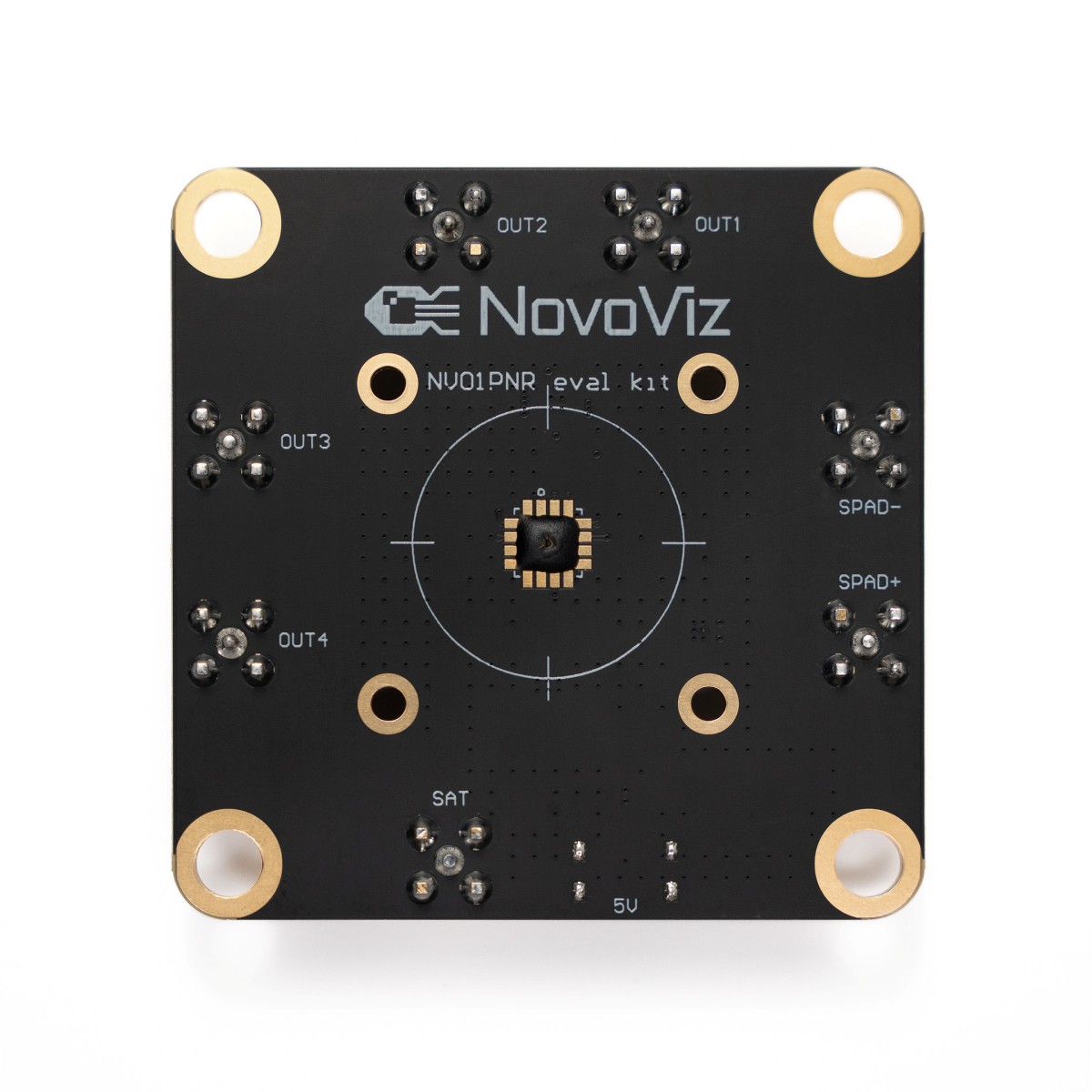

The NovoViz NV01PNR-DEV was developed for applications requiring single photon point detectors with low timing jitter. The device does not require any external threshold circuitry and provides a fully digital output, compatible with standard CMOS electronics.
The sensor combines the benefits of a single-photon avalanche diode (SPAD) pixel, namely the single-photon resolution and fast operating speeds, with the benefits of on chip recharge and threshold circuitry – high event rates and reduced noise.
Our innovative sensor architecture has dedicated outputs for single, two, three and four photon thresholds as well as a separate output that connects to a single SPAD in order to optimize the timing jitter. The sensor is well suited for high dynamic range imaging, low light imaging, depth sensing and obstacle detection, among others.
Key Specifications:
- 4 x 4 SPAD cluster
- One, two, three and four photon threshold
- Digital output
- Up to 300M events/s
Applications and industries include: machine vision, quantum imaging, medical imaging and automotive.
Need a solution tailored to your project? We can make it happen. Our R&D engineers can customize our technology to meet your specific requirements. Simply complete the contact form, and a member of our team will be in touch shortly.
