SiTek SEEPOS: Sub-Micron Positioning – Plug-and-Play

The PSD signal processing and optimization tool SEEPOS, developed by SiTek, offers a complete and easy-to-use positioning solution.

High speed PSD electronics combined with digital signal processing and high speed USB data transfer gives a powerful measurement system.

With its large dynamic range SEEPOS handles light powers from nW to mW, from DC and modulated light sources.

All parameters, such as PSD bias voltage, amplifier gain, the use of analog and digital filters etc., are easily controlled from the included s

oftware and light spot position is continuously displayed both in XY and X-t, Y-t graphs.

advantages

• extremely versatile – all important parameters can be adjusted
• high performance – 16 bit A/D conversion at 1 MHz and full speed USB data transfer
• user friendly – intuitive interface based on LabVIEW
• suitable for all users – easy set-up and advanced analyzing functions included

scope

• laser beam alignment
• monitoring of vibration, deflection and motion
• target rotation and displacement

characteristics

Highest Performance

• 16 bit A/D conversion at 1 MHz and full speed USD data transfer
• resolution in optimal condition <1 micron (SN 100.000)
• bias voltage 0-30V
• dynamic range 50nA – 5mA
• trigger in- or output for signal modulation

Software

• quick and easy installation
• intuitive interface based on LabVIEW
• light spot position is continuously displayed both in XY and X-t, Y-t graphs
• control via software
  • bias voltage 0-30V
  • amplifier gain
  • use of analog and digital filters

accessory: PSD Holder MH01

The SiTek PSD Holder MH01 is a high linearity PSD assembled in a mechanical holder designed to fit perfectly with SEEPOS. It is designed to fit all ø1″ filters as well as standard optomechanical components, such as posts and lens tubes.

The holder is available with SiTek’s PSDs ranging from 2,5 – 20 mm (1D) and 2 x 2 – 20 x 20 mm² (2D), see MH01 datasheet (

do you want to know more?

Would you like to know more about SiTek’s SEEPOS?
View the datasheet (

Stay informed about product news, which is related to your field of expertise.
Go to the PEO news sign up form and select your areas of interest.

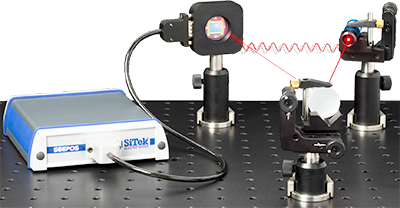

SEEPOS in case
