Centronic EO

PEO refers you to our partner's product overview.

Here you will find up-to-date information on all products and services.

Series 7 Super UV Photodiodes compliment Series 1 and primarily designed for application in the 194-400 nm range where high shunt resistance and maximum sensitivity are needed. These detectors are available in a range of standard packages with a choice of window material to suit specific... Read more

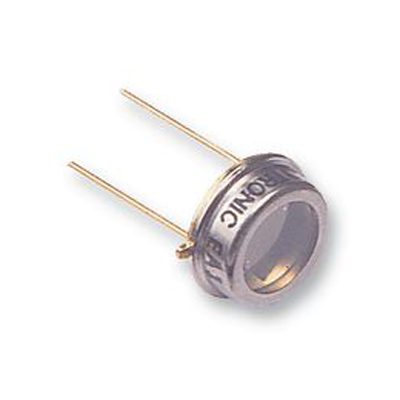

The Centronic Series 5T detectors offer high blue sensitivity coupled with high shunt resistance and low dark leakage current. They are particularly suited to low light level applications from 430-900 nm where the highest signal to noise ratio is important. They may be operated photovoltaically or with a reverse bias of up... Read more

Industry Standard Visible Light Detector (series E) Eye Response Silicon Sensors (series E) Blue and Ultraviolet Silicon Sensors (series 1) UV Enhanced Detector (series 7) Photometric and Photopic Silicon Sensors (series 5T) High Speed Extended IR Response Sensors (series 3T) High Speed 1064nm Pulse Sensors (series... Read more

Centronic ASD Series integrate high performance single element photodiodes coupled to a high input impedance op-amp to create a low noise, high gain photodetector. Light falling on the active area of the photodiode causes the output voltage to swing positive with respect to ground. The photodiode has been optimised for... Read more

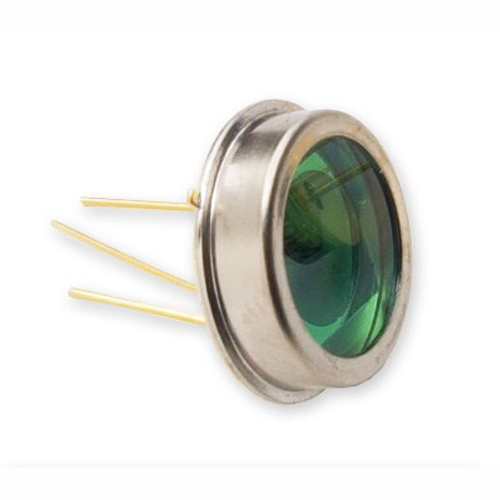

Generic industry standard visible light detector approximating the response of the human... Read more

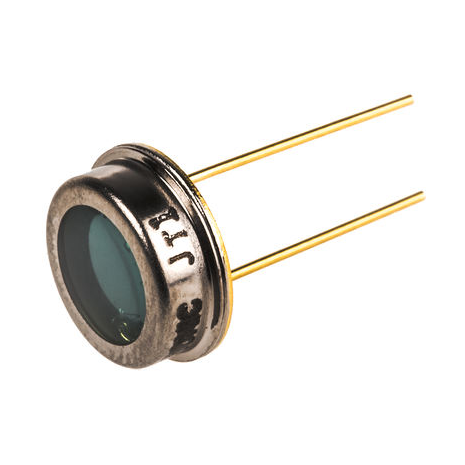

Series E photodiodes packaged with a colour correcting filter to approximate the response of the human... Read more

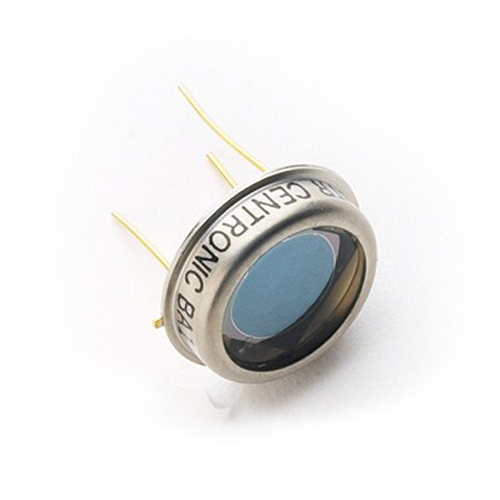

Blue and Ultraviolet Silicon Sensors (series 1). Series 1 photodiodes offer a broadband spectral response extending into the UV region. The series is particularly intended for applications from 250 to 430 nm where high levels of illumination occur. The detectors may be operated with reverse bias up to 10 volts or in the... Read more

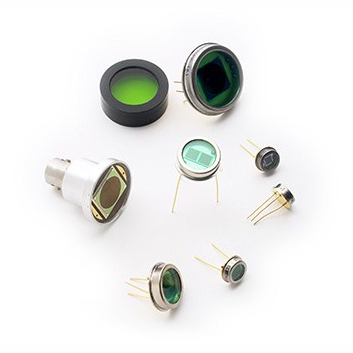

The Centronic range of photometric detectors features the proven Series 5T chip combined with specially designed coloured glass filters installed in front of the detector chip. The detectors simulate closely the spectral response of the human eye and are intended for applications requiring measurement of light levels for... Read more

High Speed Extended IR response (Series 3T). 3T series photodetectors are specifically designed for high speed, infra-red laser pulse detection. The detector structure designed to be fully depleted at 60 volts reverse bias, uses high resistivity silicon to achieve very low capacitance. The detectors offer high... Read more

Centronic designed the Infra-red Silicon Sensors, 3T series photodetectors specifically designed for high speed, infra-red laser pulse detection. The detector structure is fully depleted at 60 volts reverse bias and uses high resistivity silicon to achieve very low... Read more

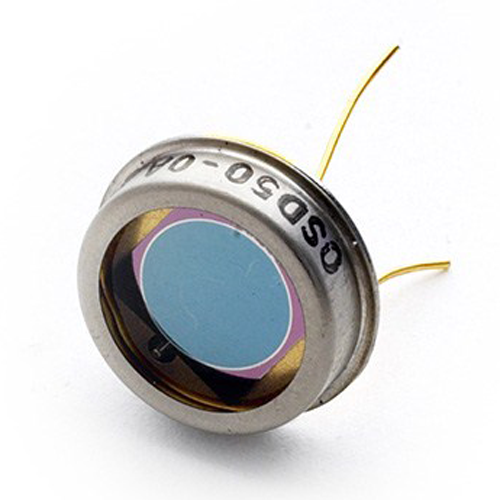

General Purpose Silicon Sensors (Series 0). Series 0 photodiodes are designed for operation at up to 30V reverse bias voltage for applications where low capacitance and high speed are important. These detectors are tailored for peak responsivity in the 780-950 nm range but are successfully used for pulsed applications... Read more
