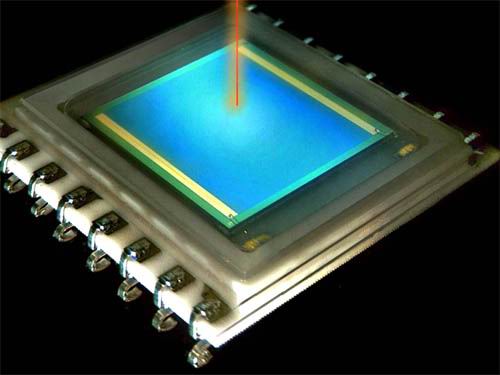

In order to facilitate the operation of SiTek PSD’s, they have developed a dedicated SPC-PSD (signal processing circuit). All components necessary to obtain the sum and difference signals from a two- or one-dimensional PSD have been concentrated on a 20,5 x 20,5 mm2 thick film substrate.
SPC-PSD features
- analogue voltage outputs of all sum and differential signals from one- and two-dimensional PSD’s
- laser trimmed resistors
- inputs for external adjustment of offset voltages
- good thermal tracking
- small size
- allows custom designed specifications
- evaluation board available
For more information on the applications of PSDs, read this PEO article.
1-dimensional SPC
Part. NoDescriptionActive areaS1-02571L2.5_SU74_SPC012.5×0.6S1-02711L2,5_SU74_SPC022.5×0.6S1-02311L5_SU74_SPC015x1S1-02721L5_SU74_SP025x1S1-02221L10_SU74_SPC0110x2S1-02731L10_SU74_SPC0210x2
2-dimensional SPC
Part. NoDescriptionActive areaS2-01782L2_SU75_SPC012x2S2-02442L2_SU75_SP022x2S2-02092L4_SU66_SPC014x4S2-02452L4_SU66_SP024x4S2-01712L10_SU65_SPC0110x10S2-02462L10_SU65_SP0210x10
SPC-PSD Evaluation Board
In order to simplify the set up of our popular signal processing circuits in an optical system SiTek now releases an SPC-PSD Evaluation Board.
The Evaluation Board can easily be mounted on an optical table by using a standard 2” filter holder or screwed to for example an XYZ stage by using M6 screws. The board includes offset compensation electronics and a 14-pin connector that makes the inputs and outputs easily accessible.
Evaluation boards for both the J-lead and the DIL version are available and, as all of our products, they are of course RoHS compliant.
Part. NoDescription: SE-0012SPC01 Evaluation Board, SE-0013SPC02 Evaluation Board
For more information about this product, visit our partner’s website!
PDF and available downloads
You can download the information on this page and the available downloads as one PDF file. There is one download available for this product.
Enter your email address once to gain access to all downloads on the PEO website.
There is one download available for this product.
Datasheet SPC-PSD - SiTek
