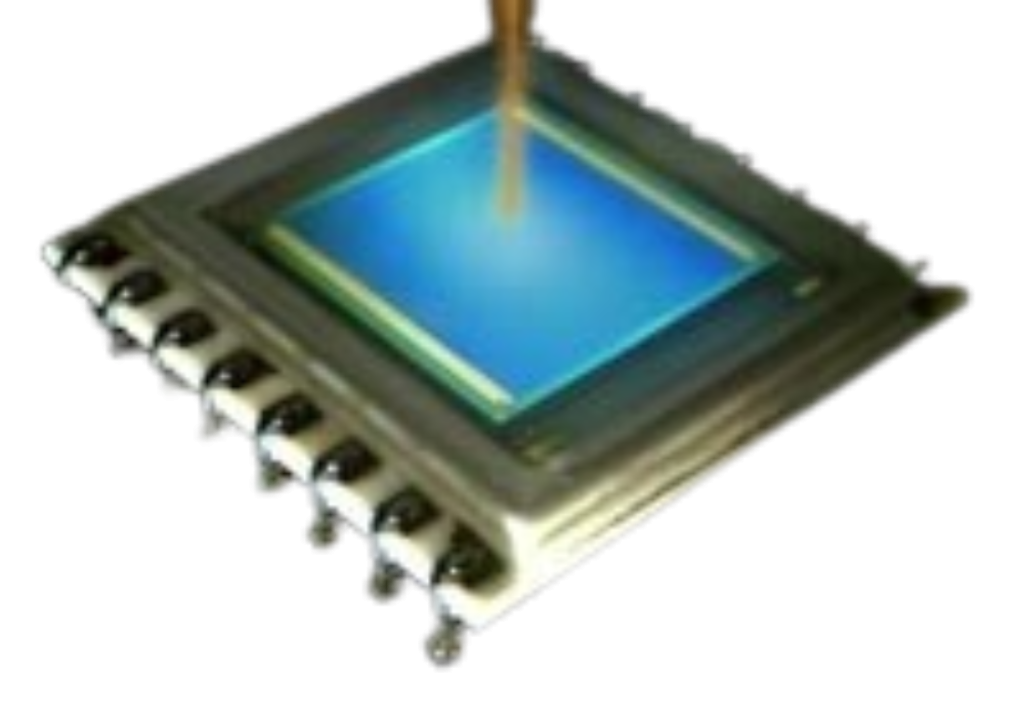

The SiTek SPC-PSD is a PSD with an attached signal processing circuit. The PSD currents are output as bipolar voltages representing the position and intensity of the centroid of a light spot on the PSD. The intensity signal can be used for external compensation of the position (difference) signal intensity dependence. Inputs are available for external adjustment of offset voltages.
Signal Processing Circuit (SPC)
In order to obtain maximum precision, high reliability and small size, the SPC is built using thick film technology and laser trimmed resistors on a 20.5 x 20.5 mm² ceramic substrate.
The SPC is delivered with surface mount leads, but these can upon request be exchanged for DIL leads.
Features
- Analogue voltage outputs of all sum and differential signals from one- and two-dimensional PSDs
- Laser trimmed resistors
- Inputs for external adjustment of offset voltages
- Good thermal tracking
- Small size
- Allows custom designed specifications
The SPC comes complete with a 2L10 or 2L4 PSD or any of our one-dimensional PSDs. The signal processing circuit can also be used as a stand-alone unit together with any of our PSDs.
1-Dimensional SPC-PSD
| Part. No | Description | Active area (mm) |
|---|---|---|
| S1-0257 | 1L2.5_SU74_SPC01 | 2.5 x 0.6 |
| S1-0271 | 1L2.5_SU74_SPC02 | 2.5 x 0.6 |
| S1-0231 | 1L5_SU74_SPC01 | 5 x 1 |
| S1-0272 | 1L5_SU74_SPC02 | 5 x 1 |
| S1-0222 | 1L10_SU74_SPC01 | 10 x 2 |
| S1-0273 | 1L10_SU74_SPC02 | 10 x 2 |
2-Dimensional SPC-PSD
| Part. No | Description | Active area (mm) |
|---|---|---|
| S2-0178 | 2L2_SU75_SPC01 | 2 x 2 |
| S2-0244 | 2L2_SU75_SPC02 | 2 x 2 |
| S2-0209 | 2L4_SU66_SPC01 | 4 x 4 |
| S2-0245 | 2L4_SU66_SPC02 | 4 x 4 |
| S2-0171 | 2L10_SU65_SPC01 | 10 x 10 |
| S2-0246 | 2L10_SU65_SPC02 | 10 x 10 |
Applications
Applications include analogue PSD front-end electronics in displacement measuring systems for OEM integration as well as evaluation and development purposes.
More Information
For more information, simply complete the contact form, and a member of our team will be in touch shortly.
